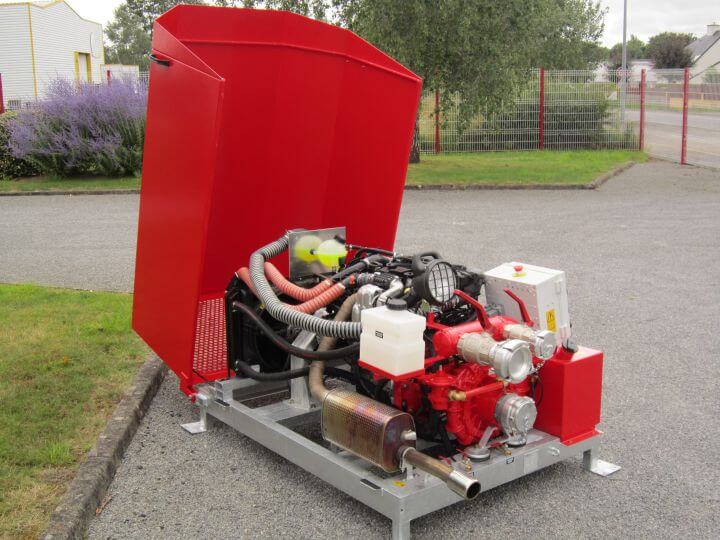

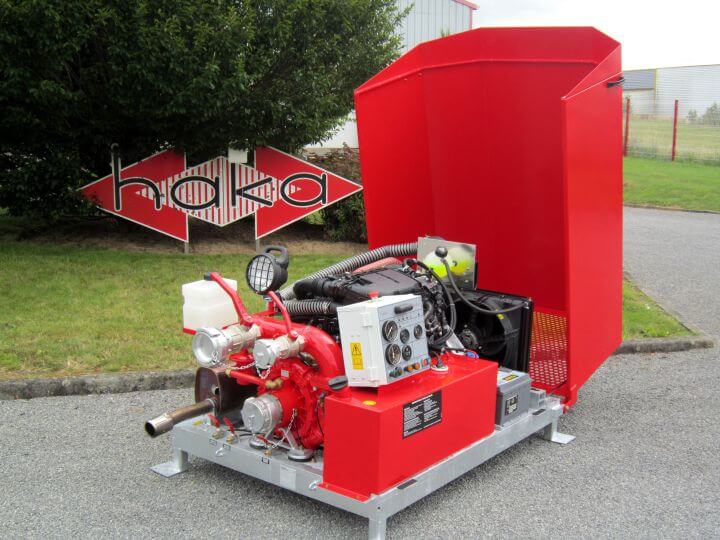

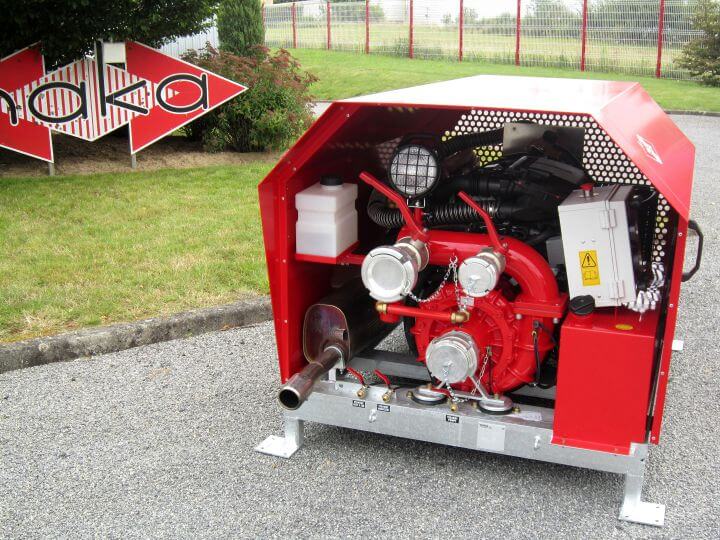

MPF 2000/15 Gas engine

Stationary fire pump

Characteristics

  • Flowrate : 2000 litres/minute
  • Pressure : 15 bars
  • Height : 3m
  • Dimensions : Length: 1.500m / Width: 1.100m / Height: 0.800m
  • Service weight : 450kg

Specific features

PUMP

HAKA pumps – Type GB 120/15 AE

  • Single-cell centrifugal pumps.
  • Suction : 2xND100 fitted with 1/2 AR couplings with filters + plugs with bead chains.
  • Discharge : 2 to 5 mushroom valves or ¼ turn valves fitted with ½ DSP couplings ND65 and/or ND100 with plugs and bead chains.
  • Primer : fitted with an electric motor and a rotary vane vacuum pump, designed to operate without water and oil.
  • Option : water ring primer.

    The power pump is fitted with an electronic pump pressure control system.

MOTORISATION

PEUGEOT engine — Type EP6

  • Electronic injection.
  • Power : 115 kw at 6000 rpm - 1598 cm3.
  • Cooling : self-contained closed-cycle, with a radiator fitted with two electric fans.
  • Electronic ignition system – Battery main switch, emergency stop push-button
  • Stainless steel gas tank – autonomy 2 hrs.
